Discover cutting-edge laser cutting and welding machines engineered for precision, productivity, and power. From compact models to industrial-grade systems, our solutions meet the demands of modern fabrication industries.

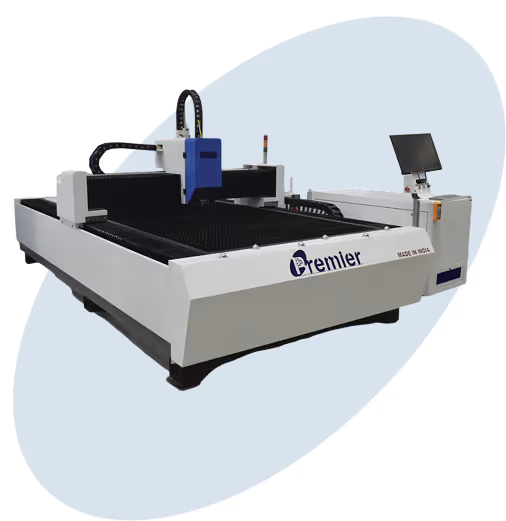

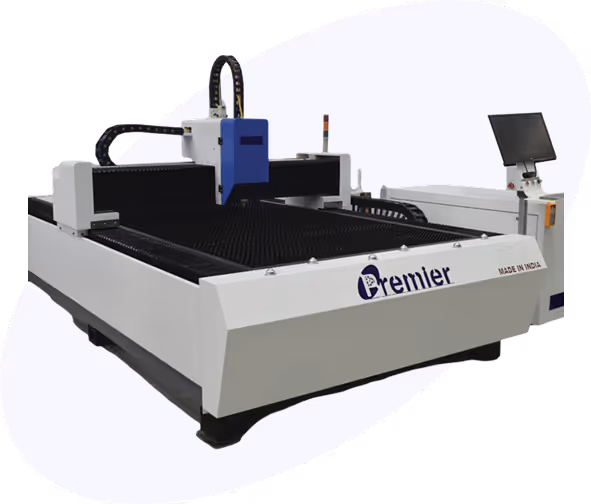

The Single Table Model laser cutting machine is engineered for precision cutting of sheet metals with high efficiency. Its compact, cost-effective design makes it ideal for small to medium production units demanding reliable laser performance.
Single Table Model
The Single Table Model laser cutting machine is engineered for precision cutting of sheet metals with high efficiency. Its compact, cost-effective design makes it ideal for small to medium production units demanding reliable laser performance.
Key Features
01.
Compact footprint with ergonomic single-table setup.
02.
Precision fiber laser source for clean and sharp cuts.
03.
User-friendly CNC control system with auto-focusing head.
04.
Optimized for low to mid-volume cutting tasks.
Applications
Large-Scale Construction Projects
Industrial Facility Maintenance
Commercial Renovations
Installation Guide
Specifications
Model
3015
X Axis
1550 mm
Effective Stroke
Y Axis
3020 mm
Z Axis
100 mm
X Axis
± 0.5 mm/m
Position Accuracy
Y Axis
± 0.5 mm/m
Z Axis
± 0.01 mm/m
X Axis
± 0.1 mm/m
Repeated Accuracy
Y Axis
± 0.1 mm
Z Axis
± 0.05 mm
Max Position Speed
80 m/min
Acceleration
1 G
Max Cutting Thickness
As per Laser Source
Protection Level
IP54
Sizes Available
1500x3000 | 2000x4000 | 2000x6500
Discover Single Table Model's Strength
Discover the full potential of our product with detailed catalog—download now for specs, features, and expert insights.

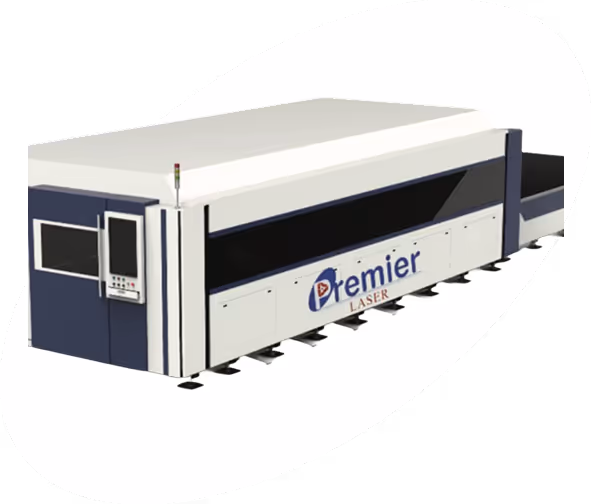

Designed for high-throughput operations, the Double Table Model allows for simultaneous loading and cutting, significantly reducing idle time. A perfect solution for workshops aiming to scale up production with precision.
Double Table Model
Designed for high-throughput operations, the Double Table Model allows for simultaneous loading and cutting, significantly reducing idle time. A perfect solution for workshops aiming to scale up production with precision.
Key Features
01.
Dual-platform for continuous cutting and loading.
02.
Fully enclosed design for operator safety and dust control.
03.
Fast servo motor-driven table change mechanism.
04.
Integrated software for nesting and efficient material use.
Applications
Residential Wall and Ceiling Painting
Metal Surface Coating Projects
Retail Space Refresh Works
Installation Guide
Specifications
Model
3015
X Axis
1550 mm
Effective Stroke
Y Axis
3020 mm
Z Axis
100 mm
X Axis
± 0.5 mm/m
Position Accuracy
Y Axis
± 0.5 mm/m
Z Axis
± 0.01 mm/m
X Axis
± 0.1 mm/m
Repeated Accuracy
Y Axis
± 0.1 mm
Z Axis
± 0.05 mm
Max Position Speed
80 m/min
Acceleration
1 G
Max Cutting Thickness
As per Laser Source
Protection Level
IP54
Sizes Available
1500x3000 | 2000x4000 | 2000x6500
Unlock Double Table Model's Power
Discover the full potential of our product with detailed catalog—download now for specs, features, and expert insights.

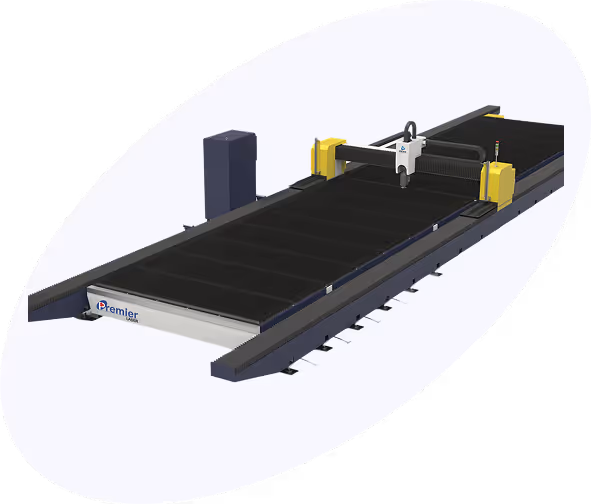

The Herculean Model is a robust industrial laser cutter designed for heavy-duty and thick metal sheet applications. Built to handle long operational cycles with unmatched structural rigidity and precision.
Herculean Model – Heavy-Duty Laser Cutting
The Herculean Model is a robust industrial laser cutter designed for heavy-duty and thick metal sheet applications. Built to handle long operational cycles with unmatched structural rigidity and precision.
Key Features
01.
Reinforced body structure for heavy-load operations.
02.
High-power fibre laser with deeper penetration capacity.
03.
Anti-collision cutting head with intelligent height control.
04.
Ideal for large fabrication industries and job shops.
Applications
Mid-Sized Commercial Building Painting
Interior Hallway and Lobby Coatings
Large-Scale Construction Projects
Installation Guide
Experience Herculean's Power
Discover the full potential of our product with detailed catalog—download now for specs, features, and expert insights.

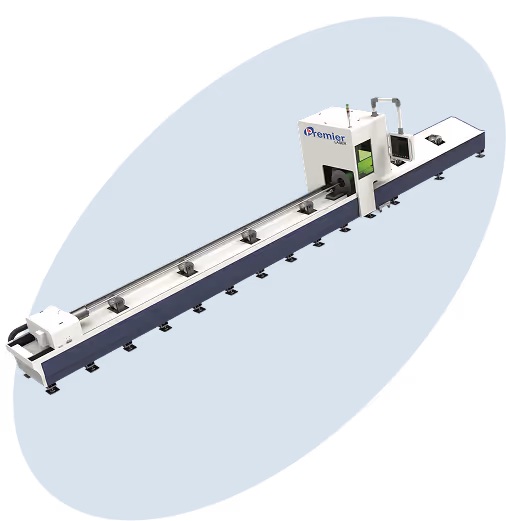

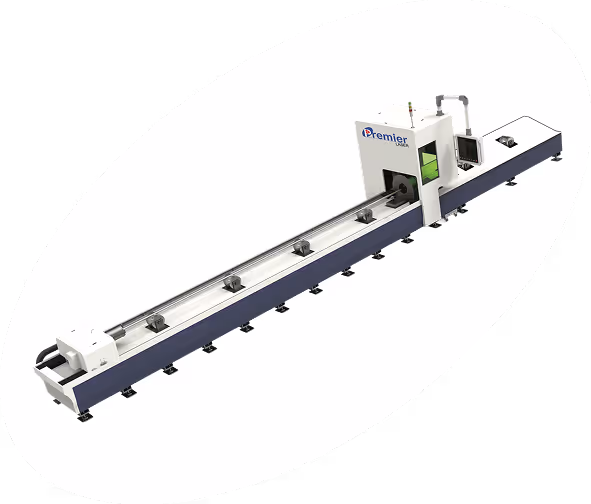

The SF Series is a specialized laser machine tailored for precise and automated pipe cutting tasks. It ensures consistent output in complex pipe cutting applications with minimal material wastage.
SF Series Pipe Cutting Machine
The SF Series is a specialized laser machine tailored for precise and automated pipe cutting tasks. It ensures consistent output in complex pipe cutting applications with minimal material wastage.
Key Features
01.
Multi-axis system for angular and bevel pipe cuts.
02.
Suitable for round, square, and rectangular tubes.
03.
Pneumatic clamping for secure tube hold and rotation.
04.
Real-time laser alignment system for high accuracy.
Applications
Outdoor Facade Repainting Projects
Warehouse and Storage Unit Painting
Institutional Building Renovation Jobs
Installation Guide
Discover SF Series' Strength
Discover the full potential of our product with detailed catalog—download now for specs, features, and expert insights.

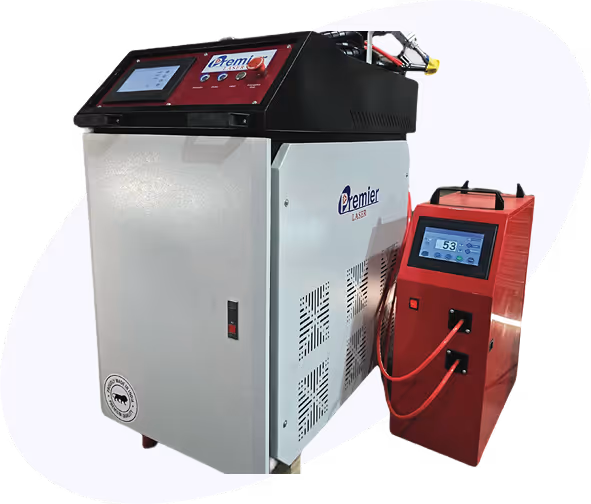

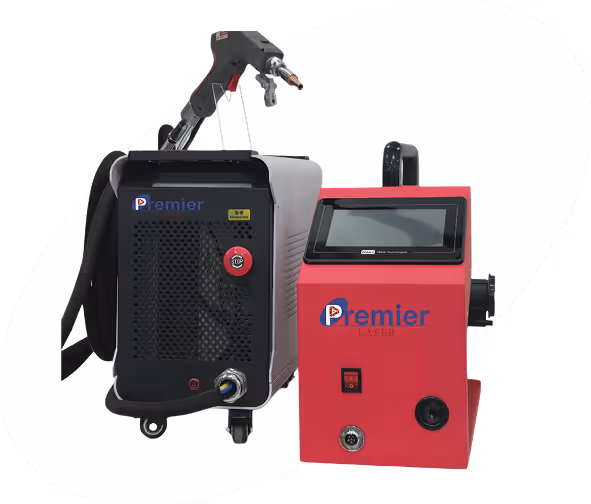

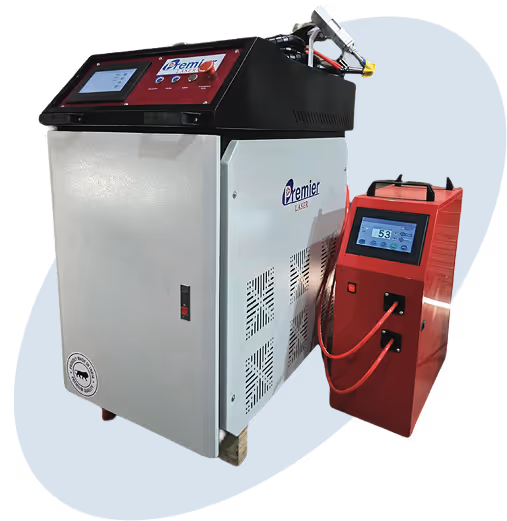

This compact Air Cooled Laser Welding unit is perfect for light to moderate welding applications. It eliminates the need for external water chillers, providing a maintenance-friendly solution for precision welding.
Air Cooled Laser Welding
This compact Air Cooled Laser Welding unit is perfect for light to moderate welding applications. It eliminates the need for external water chillers, providing a maintenance-friendly solution for precision welding.
Key Features
01.
Compact and portable design with air-cooled system.
02.
Clean, spatter-free welds on stainless steel and aluminum.
03.
Real-time power control and stable arc output.
04.
Integrated safety lock and error detection system.
Applications
Large-Scale Construction Painting Projects
Industrial Facility Maintenance Coating
Airport and Stadium Paint Jobs
Specifications
Rated Output Power
PL-S800
800 W
PL-S100A
1000 W
PL-S1500W
1500 W
PL-S2000W
2000 W
Welding Thickness
PL-S800
1<1.2 mm (Stainless Steel) | <0.8 mm (Carbon Steel)
PL-S100A
<2.5 mm (Stainless Steel) | <1.5 mm (Carbon Steel) | <1 mm (Aluminium)
PL-S1500W
<4 mm (Stainless Steel) | <2.5 mm (Carbon Steel) | <2 mm (Aluminium)
PL-S2000W
<5 mm (Stainless Steel) | <3.5 mm (Carbon Steel) | <3 mm (Aluminium)
Beam Quality
PL-S800
M2 < 1.1
PL-S100A
M2 < 1.15
PL-S1500W
M2 < 1.2
PL-S2000W
M2 < 1.2
Output Fiber Length
Standard 10 m / Customizable Lengthning
Fiber Bending Radius
10 mm
Way of Working
Continuous CW / Modulation
Working Environment Temperature Range
15 - 35 °C / <70% without condensation
Weld Head Operating Mode
Normal / Hand-held Swing Welding Mode
Power Consumption of the whole Machine
PL-S800
4 KW
PL-S100A
6 KW
PL-S1500W
9 KW
PL-S2000W
12 KW
Cooling Mode Power Requirements
PL-S800
AC 220V ± 10% / 50 Hz / 40 A
PL-S100A
Built-in Chiller 3PH AC 380V ± 10% / 50 Hz / 40 A
PL-S1500W
"
PL-S2000W
"
Unlock Air Cooled LWM's Power
Discover the full potential of our product with detailed catalog—download now for specs, features, and expert insights.
Built for heavy-duty and long-duration tasks, the Water Cooled Laser Welding Machine provides efficient thermal regulation for continuous operation. It is suitable for industrial-grade fabrication environments.
Water Cooled Laser Welding
Built for heavy-duty and long-duration tasks, the Water Cooled Laser Welding Machine provides efficient thermal regulation for continuous operation. It is suitable for industrial-grade fabrication environments.
Key Features
01.
Continuous-duty laser system with water cooling unit.
02.
Excellent for deep penetration and thick metal welds.
03.
Seam tracking system for consistent weld alignment.
04.
Low heat input ensuring minimal warping.
Applications
Outdoor Facade Repainting Projects
Warehouse and Storage Unit Painting
Institutional Building Renovation Jobs
Installation Guide
Specifications
Rated Output Power
PL-S800
800 W
PL-S100A
1000 W
PL-S1500W
1500 W
PL-S2000W
2000 W
Welding Thickness
PL-S800
1<1.2 mm (Stainless Steel) | <0.8 mm (Carbon Steel)
PL-S100A
<2.5 mm (Stainless Steel) | <1.5 mm (Carbon Steel) | <1 mm (Aluminium)
PL-S1500W
<4 mm (Stainless Steel) | <2.5 mm (Carbon Steel) | <2 mm (Aluminium)
PL-S2000W
<5 mm (Stainless Steel) | <3.5 mm (Carbon Steel) | <3 mm (Aluminium)
Beam Quality
PL-S800
M2 < 1.1
PL-S100A
M2 < 1.15
PL-S1500W
M2 < 1.2
PL-S2000W
M2 < 1.2
Output Fiber Length
Standard 10 m / Customizable Lengthning
Fiber Bending Radius
10 mm
Way of Working
Continuous CW / Modulation
Working Environment Temperature Range
15 - 35 °C / <70% without condensation
Weld Head Operating Mode
Normal / Hand-held Swing Welding Mode
Power Consumption of the whole Machine
PL-S800
4 KW
PL-S100A
6 KW
PL-S1500W
9 KW
PL-S2000W
12 KW
Cooling Mode Power Requirements
PL-S800
AC 220V ± 10% / 50 Hz / 40 A
PL-S100A
Built-in Chiller 3PH AC 380V ± 10% / 50 Hz / 40 A
PL-S1500W
"
PL-S2000W
"
Discover Water Cooled LWM's Strength
Discover the full potential of our product with detailed catalog—download now for specs, features, and expert insights.
